Sensors Can Predict Corrosive Conditions in Military Aircraft

DEFENSE AVIATION · CORROSION MONITORING · AIRCRAFT · CONDITION-BASED MAINTENANCE

Aircraft corrosion is not always visible from the outside. Some of the most important environments exist behind panels, beneath floorboards, around fasteners, and inside compartments that are difficult to reach during routine inspection.

Research conducted for U.S. military aviation explored whether small corrosion-monitoring sensor nodes could help maintainers understand those hidden environments and make inspection decisions based on actual corrosivity conditions rather than relying only on fixed schedules.

Why Corrosion Matters to Military Aircraft

The U.S. Department of Defense operates aircraft in widely varying environments—from marine and coastal locations to hot, humid, cold, and salt-laden regions.

Corrosion can affect airframe structures, electrical wiring and interconnection systems, avionics, fasteners, and other components. Beyond repair cost, corrosion can also increase aircraft downtime and reduce operational availability.

The historical source cited substantial corrosion-related maintenance costs across U.S. military aviation, illustrating why prevention, early detection, and efficient inspection have long been important readiness issues.

Why Manual Aircraft Inspection Can Be Difficult

Many aircraft corrosion-prone areas can be located behind access panels, floorboards, seals, and other structures that require disassembly before inspection.

One of the biggest challenges in airframe inspection is simply reaching the surface that needs to be examined.

Maintenance personnel may need to open panels, break seals, remove floorboards, or disassemble other components before visual inspection or nondestructive evaluation can begin.

Even after access is gained, some corrosion may remain difficult to detect because damage can develop beneath coatings, between overlapping components, around fasteners, or inside other concealed geometries.

Inspection Can Sometimes Disturb the Protective Environment

The source also raises an important paradox: repeatedly opening sealed areas for inspection may itself change the environment inside the aircraft.

Breaking seals and opening compartments can potentially expose previously protected areas to humidity, salts, or other environmental contaminants. That makes it valuable to know whether a hidden area actually requires access before disturbing it.

Aircraft Are Vulnerable to Several Forms of Localized Corrosion

Aircraft structures use lightweight materials and complex geometries that can be susceptible to several corrosion mechanisms.

An Aircraft Contains Many Different Microclimates

Humidity, temperature, salts, drainage, airflow, and compartment geometry can create different corrosion environments within the same aircraft.

The corrosive environment inside an aircraft is not necessarily uniform.

Temperature, relative humidity, time of wetness, airborne salts, drainage, airflow, contamination, and surrounding materials can vary significantly between compartments.

These localized environments—or microclimates—can explain why one region of an airframe experiences corrosion while another region exposed to the same outside weather remains relatively unaffected.

Measuring the Environment Where Corrosion Actually Happens

As part of a Small Business Innovation Research program for the Naval Air Systems Command, Luna Innovations developed a small multimodal corrosion-sensor system intended to monitor conditions within aircraft microclimates.

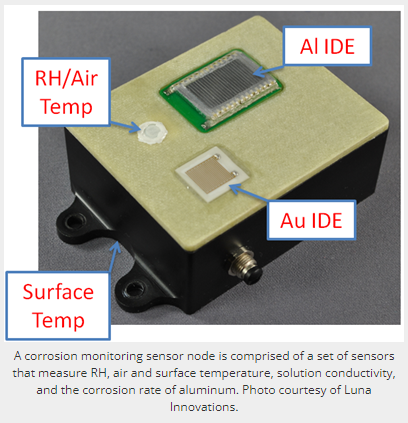

The historical system combined several measurements in a compact node rather than relying on a single environmental parameter.

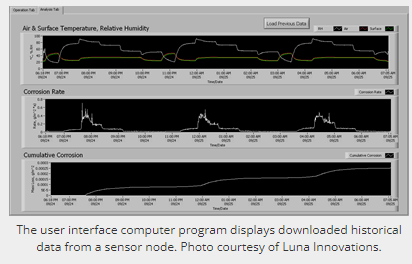

The collected data could be stored onboard and later transferred for graphical analysis, giving maintainers both current readings and a history of environmental conditions between inspections.

From Sensor Data to Corrosivity Classification

The system was designed to combine sensor output with atmospheric-corrosivity concepts based on ISO 9223.

Rather than presenting maintainers only with raw temperature or humidity readings, the system could associate measured conditions with an environmental severity classification.

That created the possibility of turning environmental measurements into more actionable maintenance information.

Installing Sensors at Known Corrosion Hotspots

Aircraft maintenance teams often already know which areas of a particular platform tend to develop corrosion.

Examples discussed in the source include locations beneath helicopter floorboards and around tail-boom structures—areas that may be corrosion-prone yet inconvenient to inspect repeatedly.

Placing a sensor node in one of these hotspots could provide environmental and corrosion information without requiring the area to be opened each time maintainers wanted to understand its condition.

Building a Corrosion History Between Inspections

Another advantage of continuous or periodic monitoring is that it can capture conditions that occur between scheduled inspections.

A short period of unusually high humidity, salt contamination, condensation, or elevated corrosion rate might otherwise disappear before the next maintenance interval.

Time-stamped monitoring data create a history that can help maintainers connect unusual corrosion activity with operating conditions, location, weather, or other events.

Testing Showed Why Internal Measurements Matter

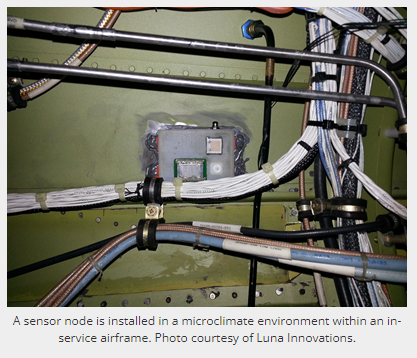

A sensor node was installed within an aircraft airframe to compare internal microclimate conditions with the surrounding ambient environment.

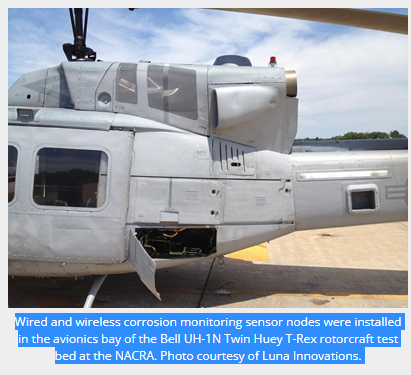

During a five-month test at Naval Air Station Patuxent River, sensor nodes were installed in the avionics bay of a Bell UH-1N rotorcraft test bed.

Researchers compared measurements from inside the aircraft with ambient weather-station data from the same time period.

The measured relative humidity inside the airframe was often significantly lower than ambient relative humidity—demonstrating that external weather data alone did not fully describe the actual environment around internal aircraft structures.

Seasonal Trends Appeared in the Corrosion Data

The research observed seasonal changes in humidity, condensate conductivity, and measured corrosion activity.

The testing also revealed seasonal trends.

During winter months, the monitored environment showed lower relative humidity, lower condensate conductivity, and lower corrosion rates than during warmer periods.

The researchers suggested that information like this could eventually help maintenance planners understand when inspection frequency might reasonably change with environmental severity.

Toward Condition-Based Corrosion Maintenance

The larger idea behind the project was to move beyond inspection that is triggered only by elapsed time.

If maintainers can understand the environmental severity and corrosion history of specific aircraft locations, inspection resources can potentially be focused where the evidence indicates they are most needed.

That is the foundation of condition-based maintenance: use real asset information to support maintenance decisions rather than treating every location as if it experiences the same environment and deterioration rate.

What This Research Still Teaches

Although the sensor hardware described in this research belongs to an earlier generation of corrosion-monitoring technology, the underlying maintenance principles remain useful.
